Production

Location

3200 Commerce St. Dallas, TX 75226

Phone: (214) 697-8086

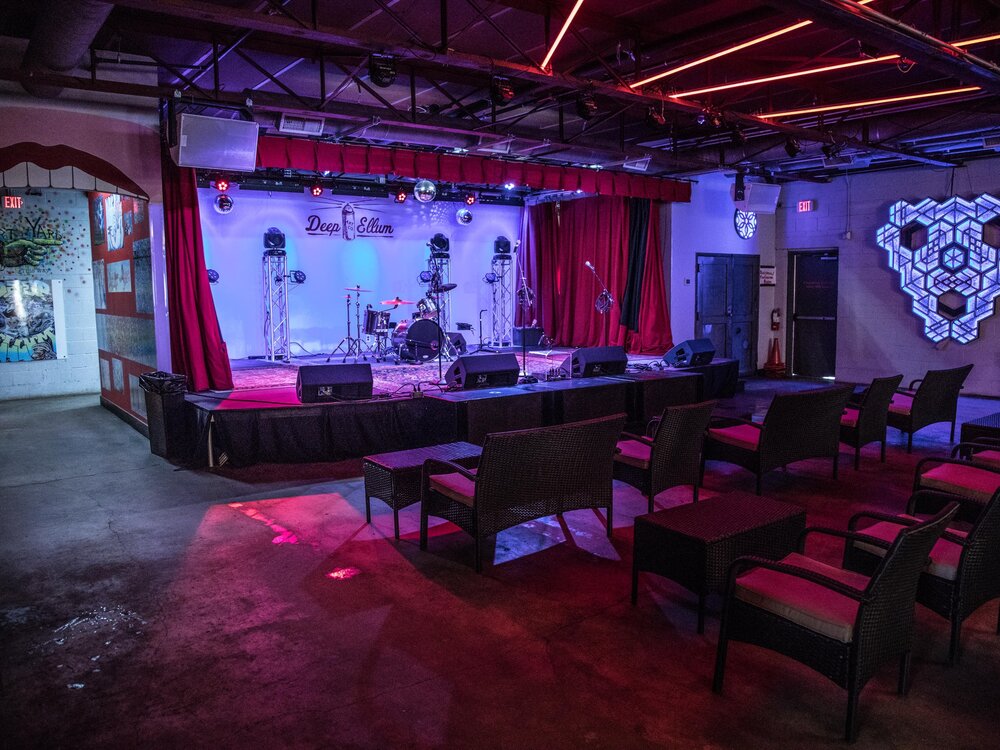

Stage

• 24′ Wide
• 18′ Deep (At Center)
• 16’3″ Deep (At Sides – front of stage has an arc/trust)
• 2′ High
• 8′ Trim Height

Electrical

• 20amp circuits available on stage on Edison Duplexes (8)
• Edison (16)
• Powerstrips (6)
• Triple Taps (2)

Sound

• Console: Midas M32 (Monitors from FoH)
• PA
  • Mains: NEXO PS-15L 2-way (2)
  • Subs: NEXO RS15-P Dual 15″ (on an Aux) (4)
  • Center Fill: NEXO PS-10 (1)
  • Delays: NEXO PS-10 (2)
  • Midas DL32 Stagebox
  • Seismic Audio 32 Channel Combo Split
  • Monitors: DAS Action M12a (5); EV (2)
  • 2 JBL Drum Subs
• Mics:
  • SM 58 (4)
  • Beta58 (1)
  • Beta57 (2)
  • SM 57 (6)
  • Audix D6 (2)
  • Beta52 (1)
  • Sennheiser e604 (6)
  • Sennheiser e614 (3)
  • Sennheiser e609 (3)
  • Whirlwind IMP DI (8), ProAV Radial (1), Whirlwind Pod (1)
  • Passive DI Box (8)
• Stands
  • Straight (5)
  • Boom (15)
  • Short Boom (10)
  • Guitar Stands (5)
  • Keyboard Stands (4)
• Cables
  • XLR (42)
  • 8 Piece XLR Loom (1)
  • 1/4 Inch (24)
  • 16 Channel Subsnakes (2)
  • Ethernet (1)

Backline

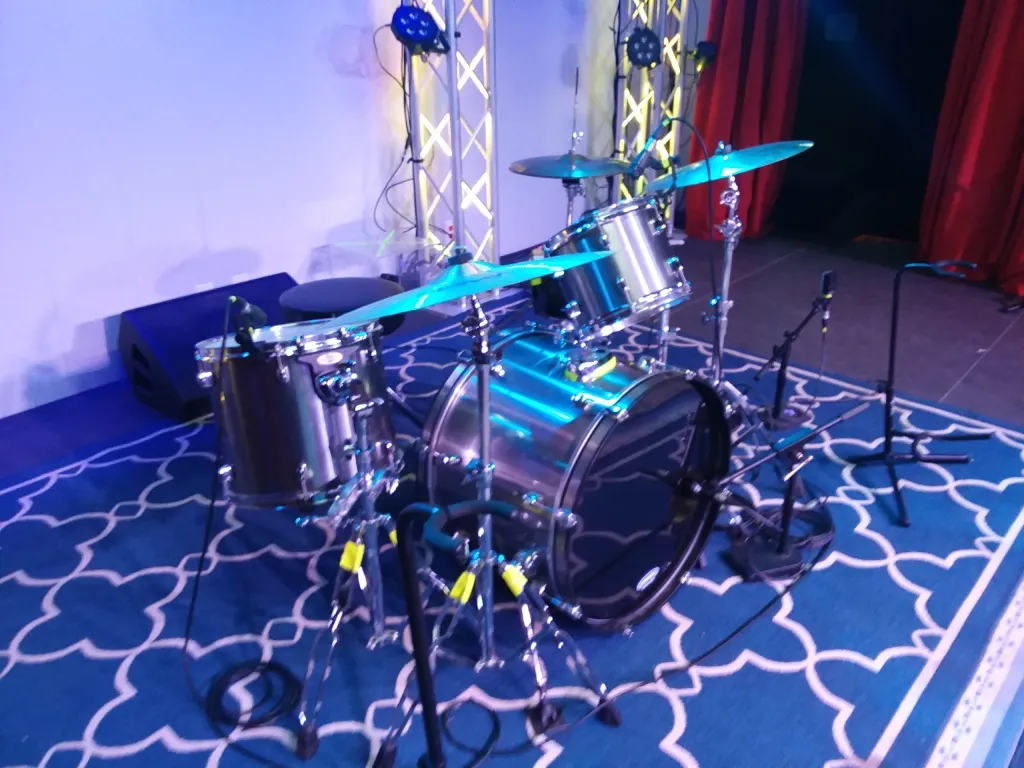

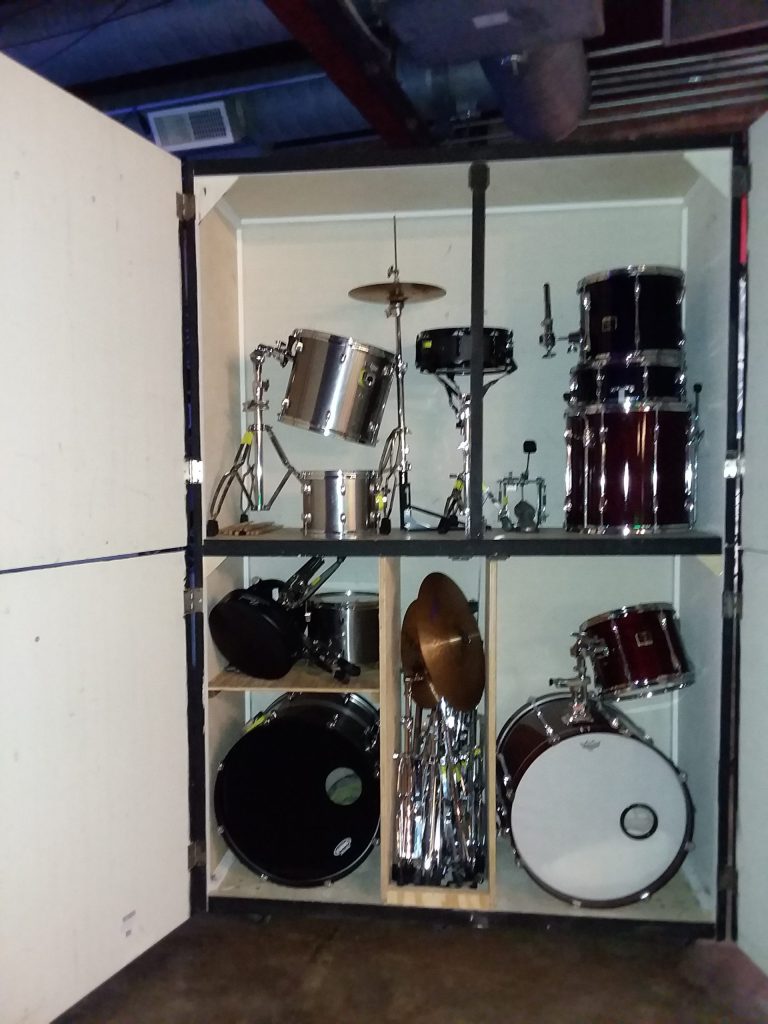

• Drums
  • Yamaha Stage Custom
    • Cymbals
    • Heads
  • Pearl Forum
    • ZBT Plus 12″ Hat, Amir Rock 16″ Crash, Paiste 400 Ride
    • Evans G1 heads
• Keyboards

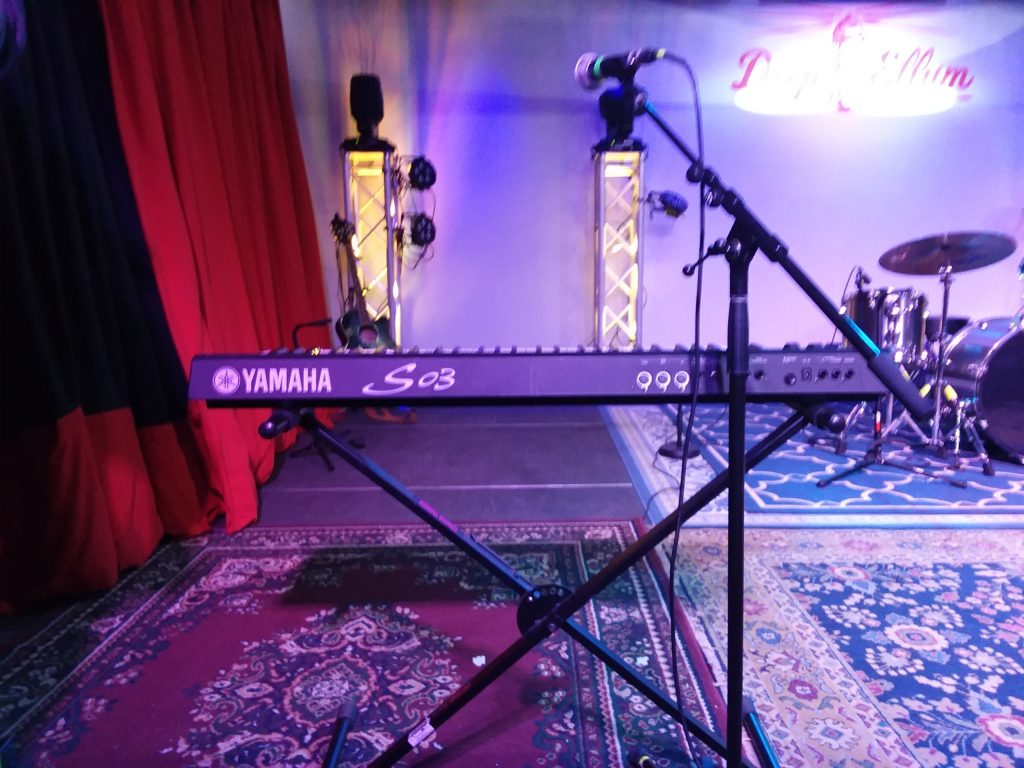

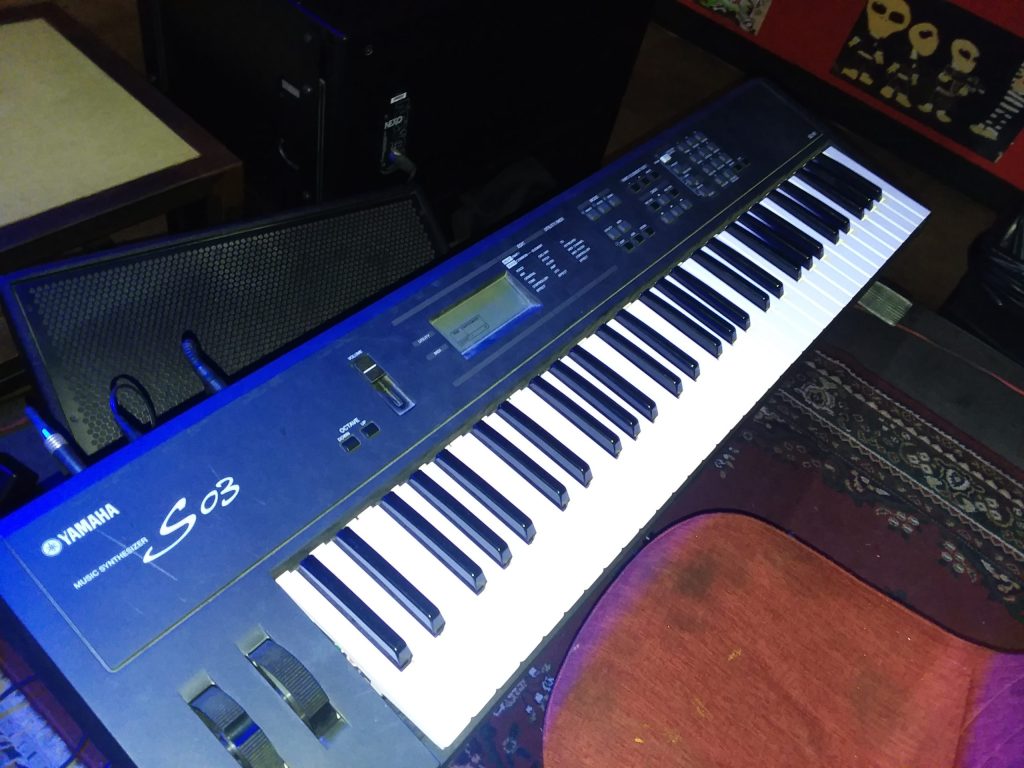

  • Yamaha S03

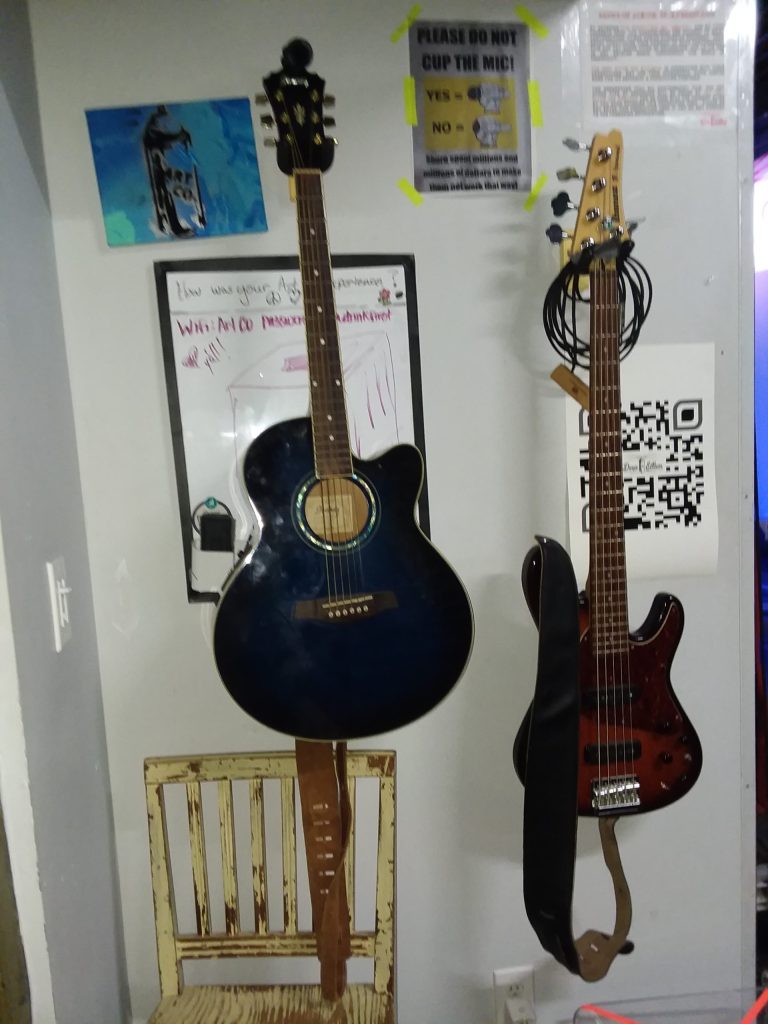

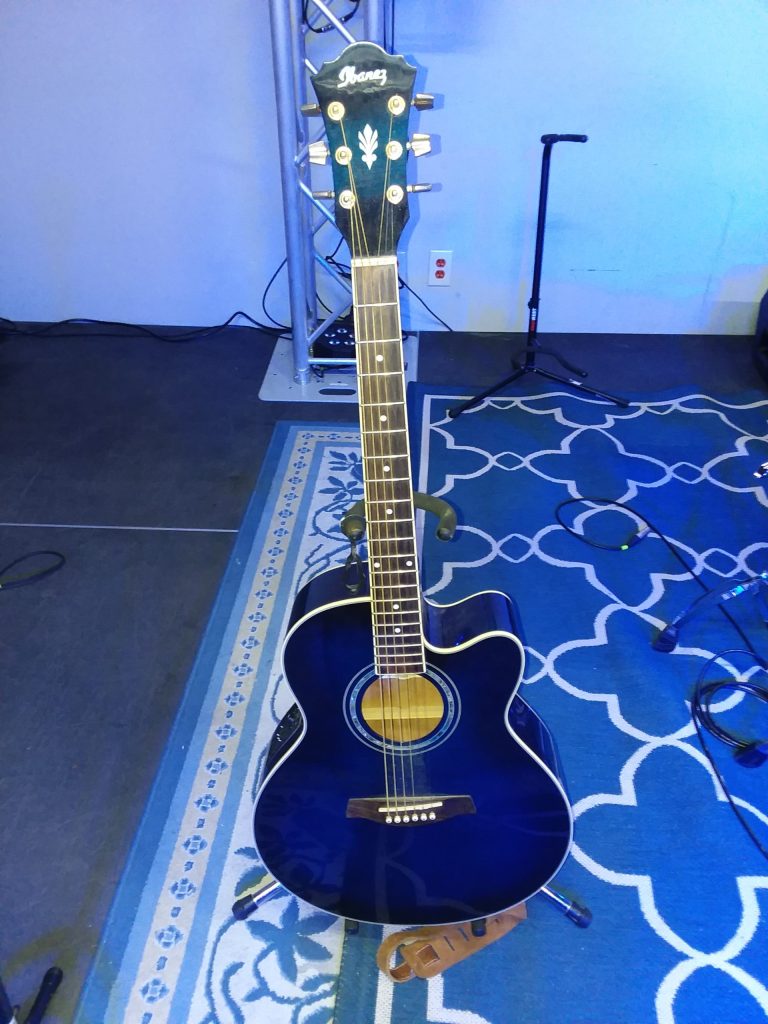

• Guitars
  • Ibanez AEL20E

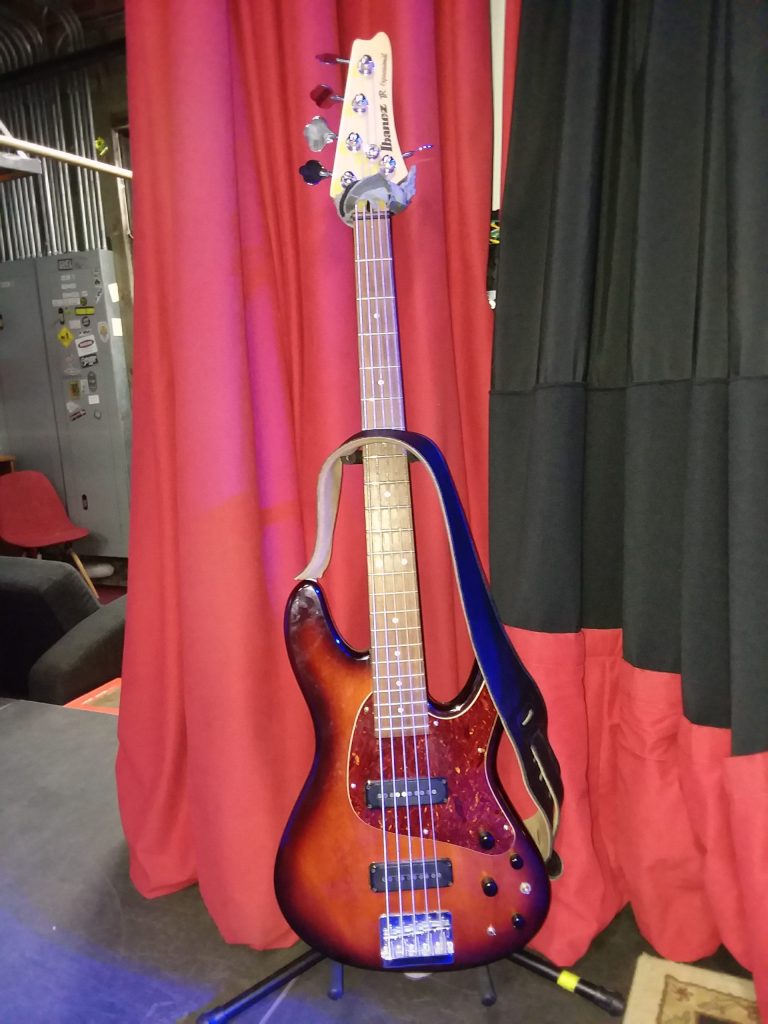

• Bass
  • Ibanez Expressonist
• Effects / Pedals
  • Zoom G3X
• No amps/cabinets onsite

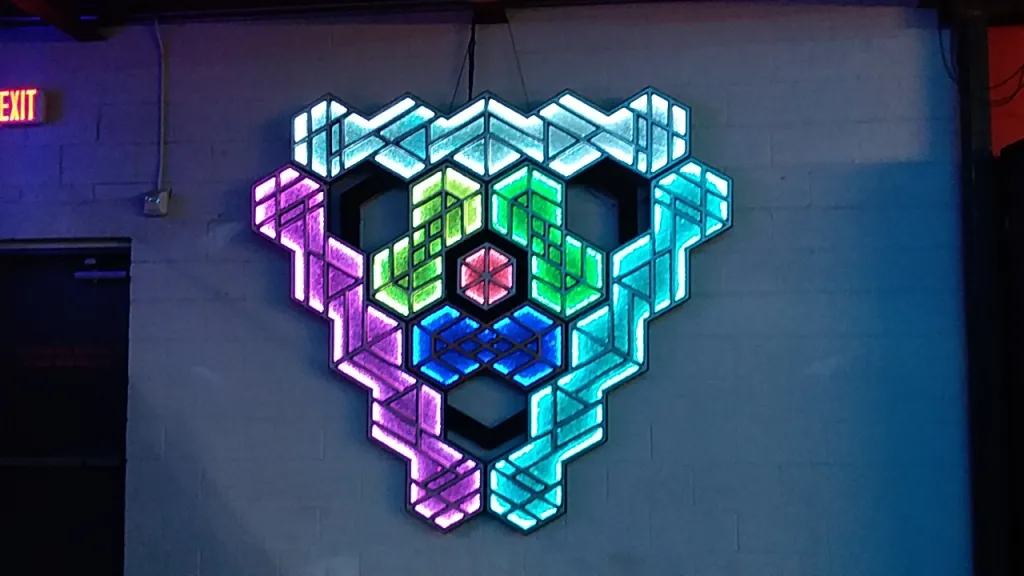

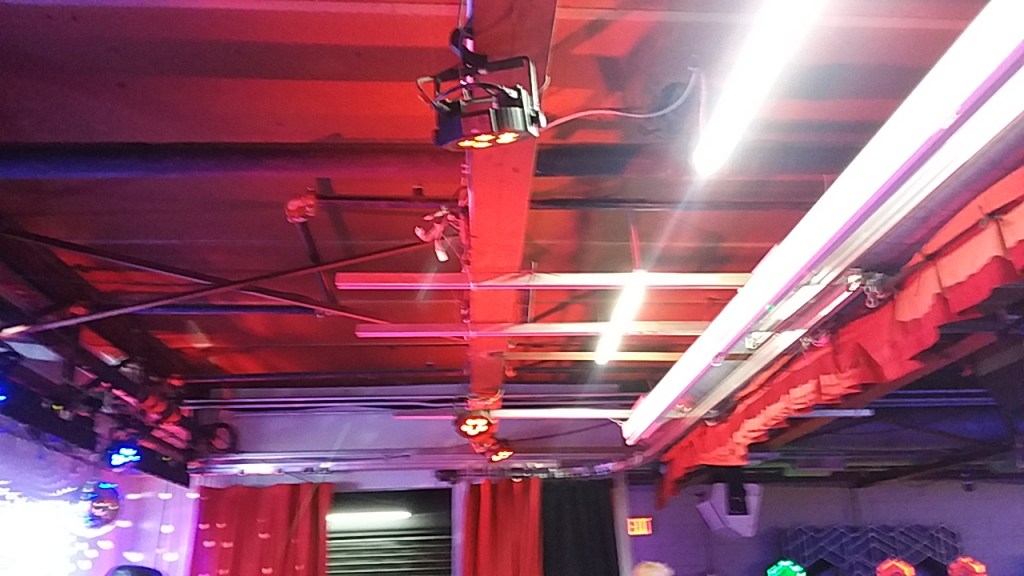

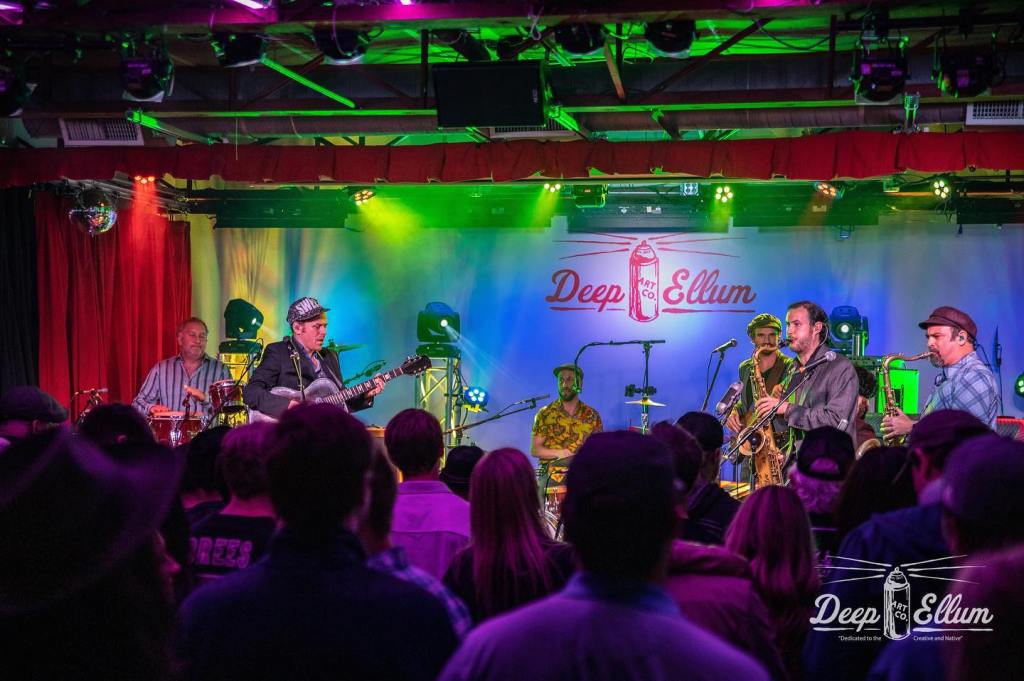

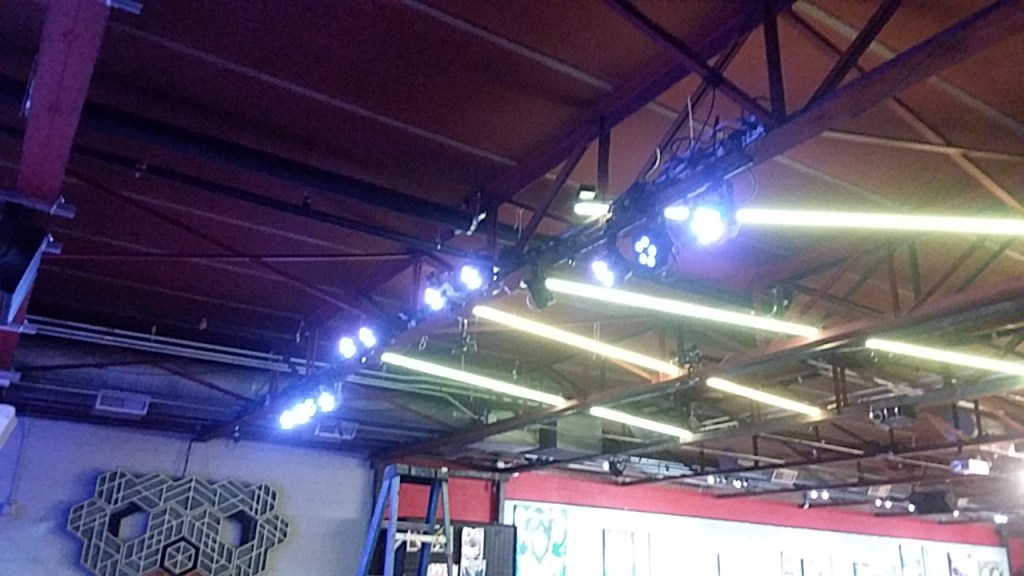

Lighting

• Martin on PC Onyx/Dylos Software (1 DMX & 2 ArtNet Universes)
• IPad Mini with TouchOSC
• Downstage Colorize Exas (9)
• Midstage  ADJ 5P Hex Pars (4)
• Upstage ADJ 5P Hex Pars (8)
• Upstage Cyc ADJ Ultra Hex Bar 12’s (5)
• MARQ Gesture Spot 400 – Movers (2 Upstage Hang / 2 Downstage Hang) (4)
• Custom RGB 16’ neon LED bars mounted over front rows of the audience (4)
• House ADJ 5P Hex Pars (7)
• 12” Discoball (static) hung from upstage rafter (2)
• Antari Hazer Z-350 (1)
• Guest 3PIN DMX home run from FOH to upstage left
• Projector Package
• Laser Package – (Extra Cost Associated)15mW Unit Lightspace 15mW Venus RGB Projector Pangolin Internal FB4 Zoning Unit
• Beyond Laser Programmer On PC

Video / Projection / Recording / Streaming / Post

• Resolume V7 – Outputs to “West Wall” Screen, Bar LCD monitors (55″/32″), stage projector, Box Office 32″

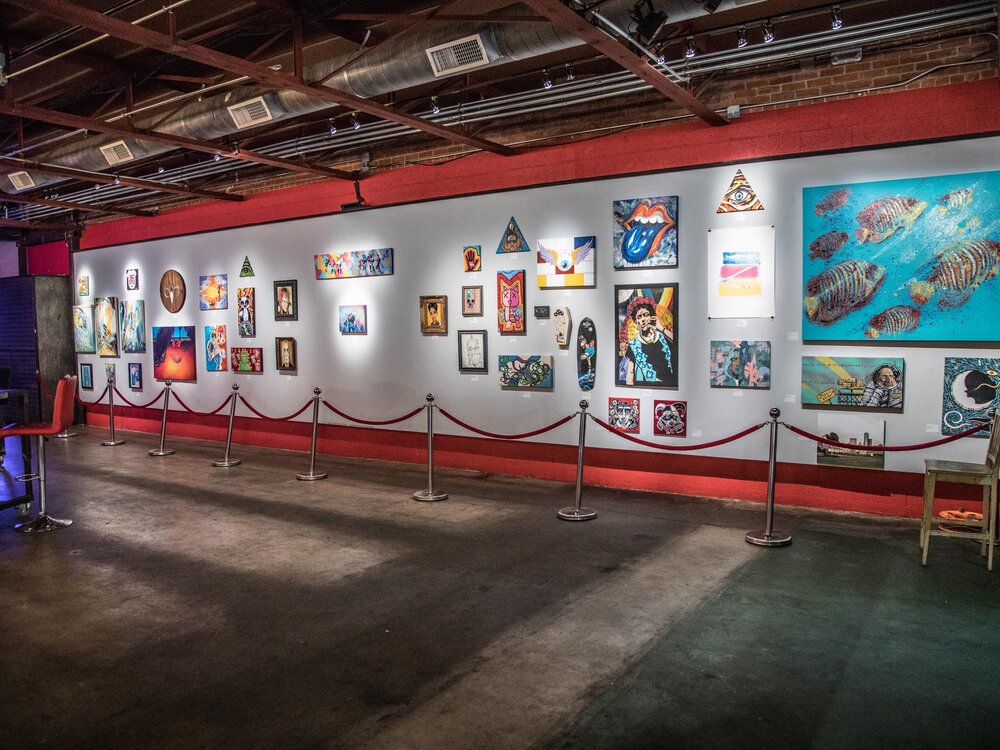

• 50′ Artwall mapped across w/ Epson H910A projector using Resolume
• Two 55″ Televisions mounted above bar
• Two 32″ Vertical mounted
• Epson H739A Ultra Short Throw Projector Located and covering stage Cyc Wall
• Rear Projection Screen Available upon 1 week advancement
• Two studio room mics located on submixer with main stereo output tracks for streaming/digital/analog records
• Digital 32 track / master recording services available

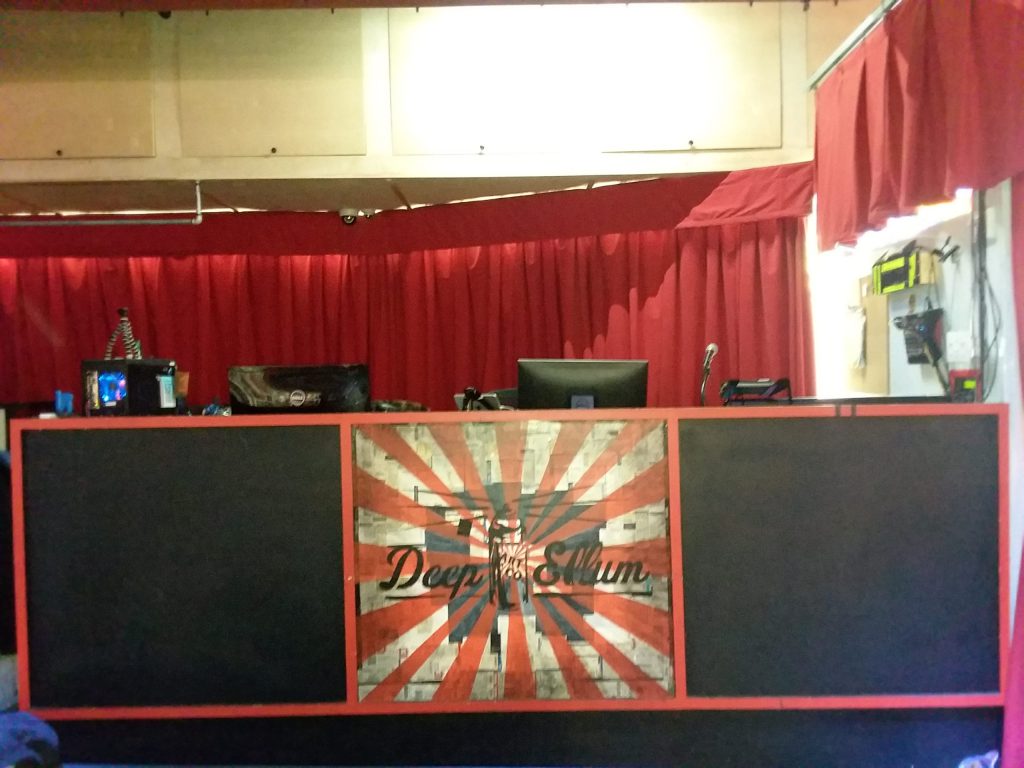

Front of House



• location – By Front Door
• size – see photos
• outlets – see photos
• Networking
  • 4 drops
  • 2 Production network / Internet
  • 2 M32 AES lines to upstage left
• feeds
• house controls
• Guest Ethernet cable & Wifi production network available
• Guest 3PIN DMX home run from FOH to upstage left
• Guest FOH A1/LD position available on 1-3 secured metal tables on floor in front of FOH.
  • 20 Amp Circuits (2)

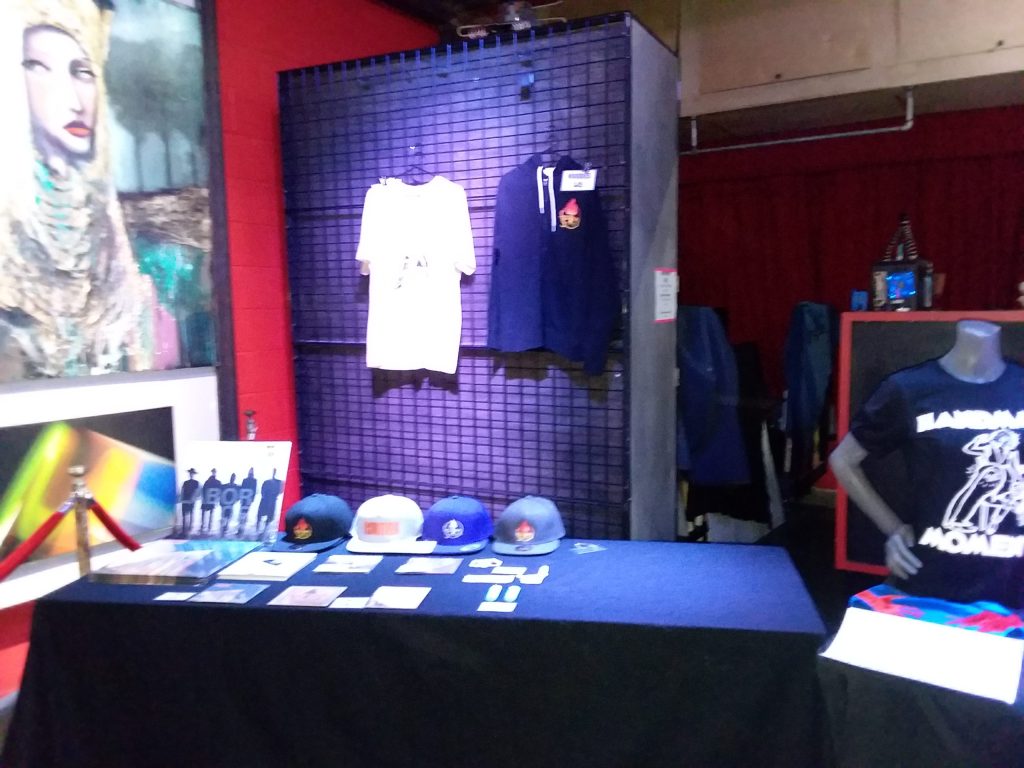

Merch

• Tables
  • Single 8 foot plastic folding table
  • 6 x 8 Grid for hanging merch
  • metal 2 height position tables (2)
  • multiple arrangements available
• Power
  • 20 Amp circuit on powerstrip (1)
• RGBW lighting provided (No UV)
• Hangers/Hooks Not Provided
• Please pay attention not to damage to the art wall installation pieces. These are valuable purchasable assets for Art Co. and vendor will be responsible of cost of any damages to pieces.

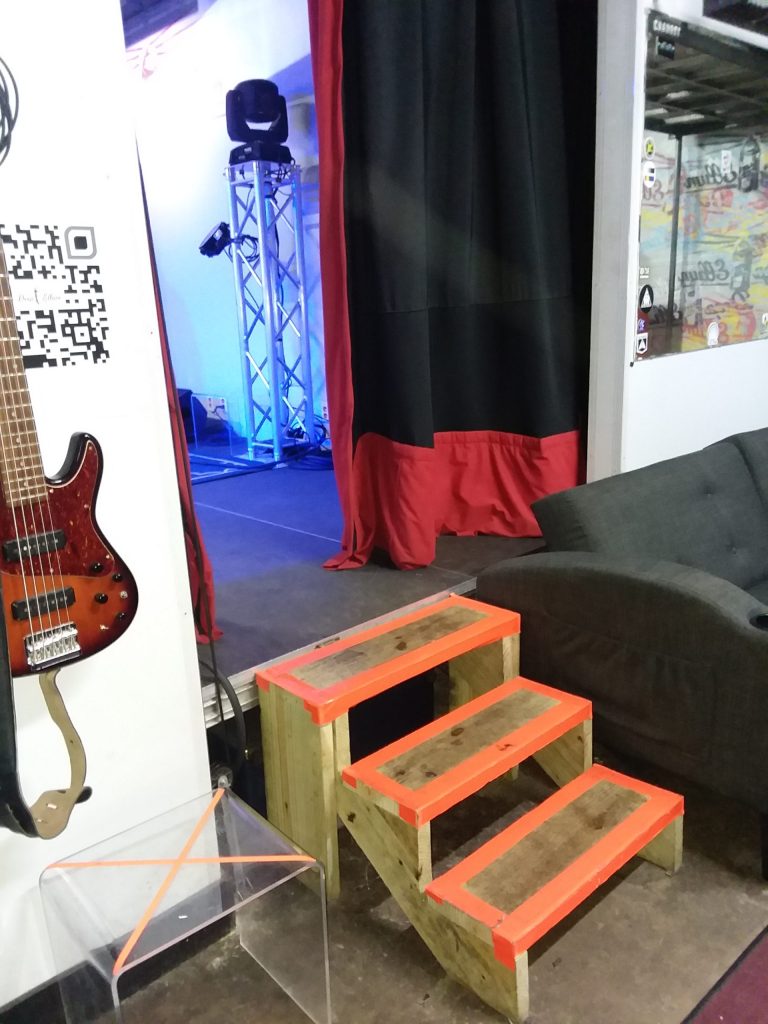

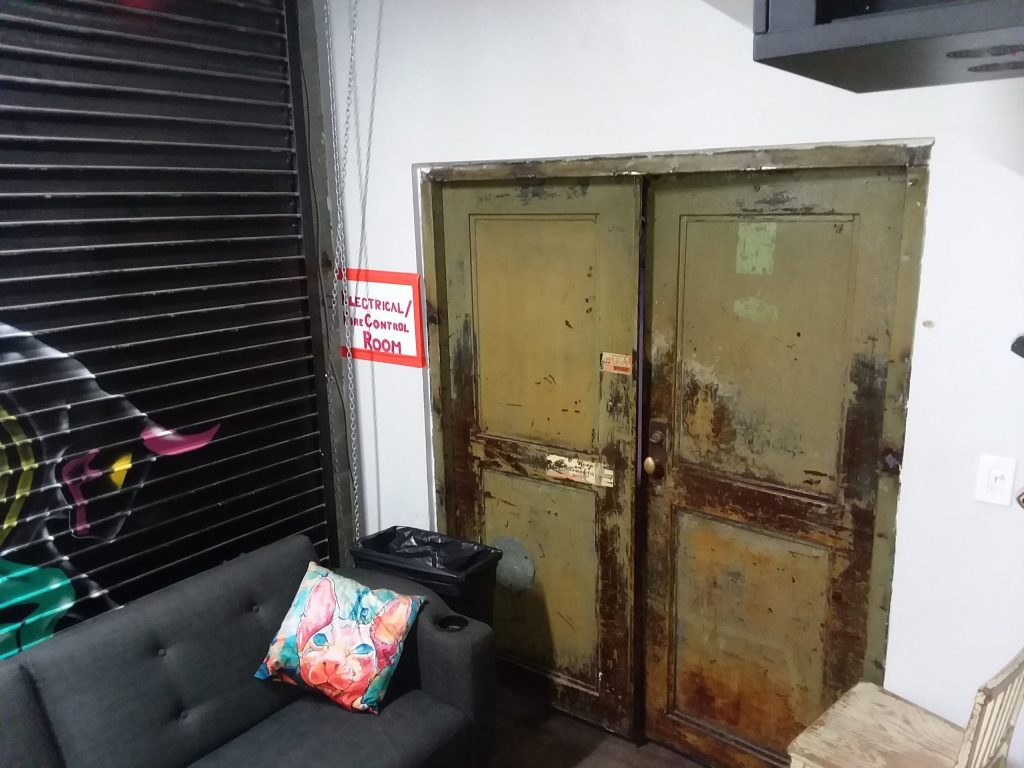

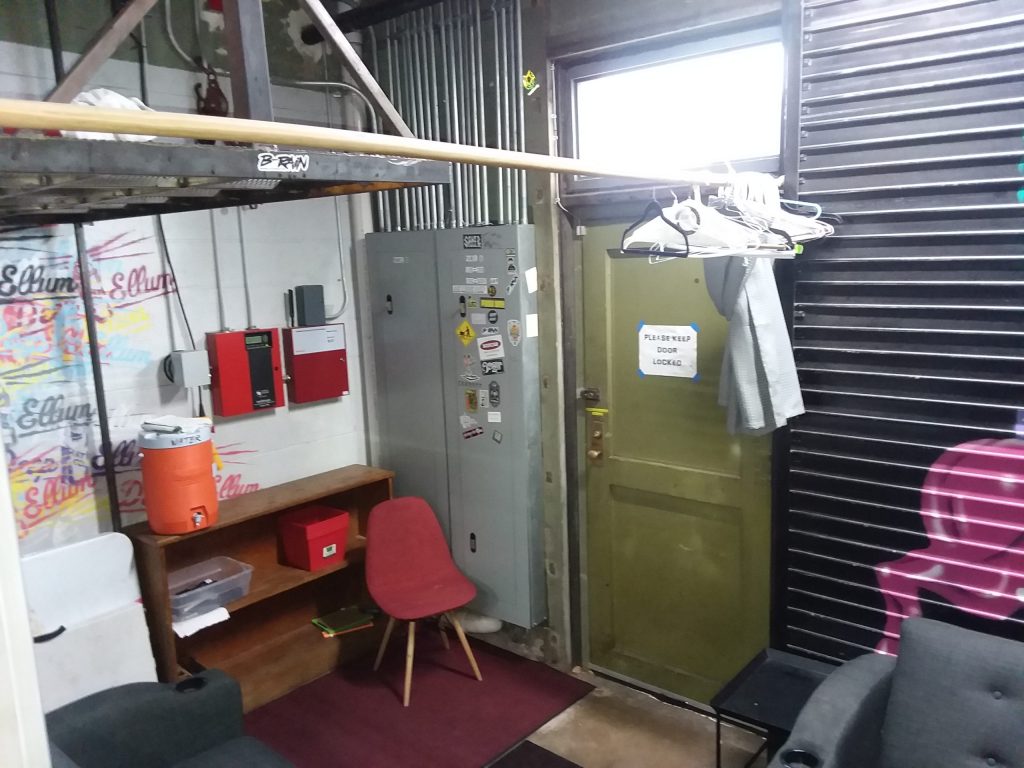

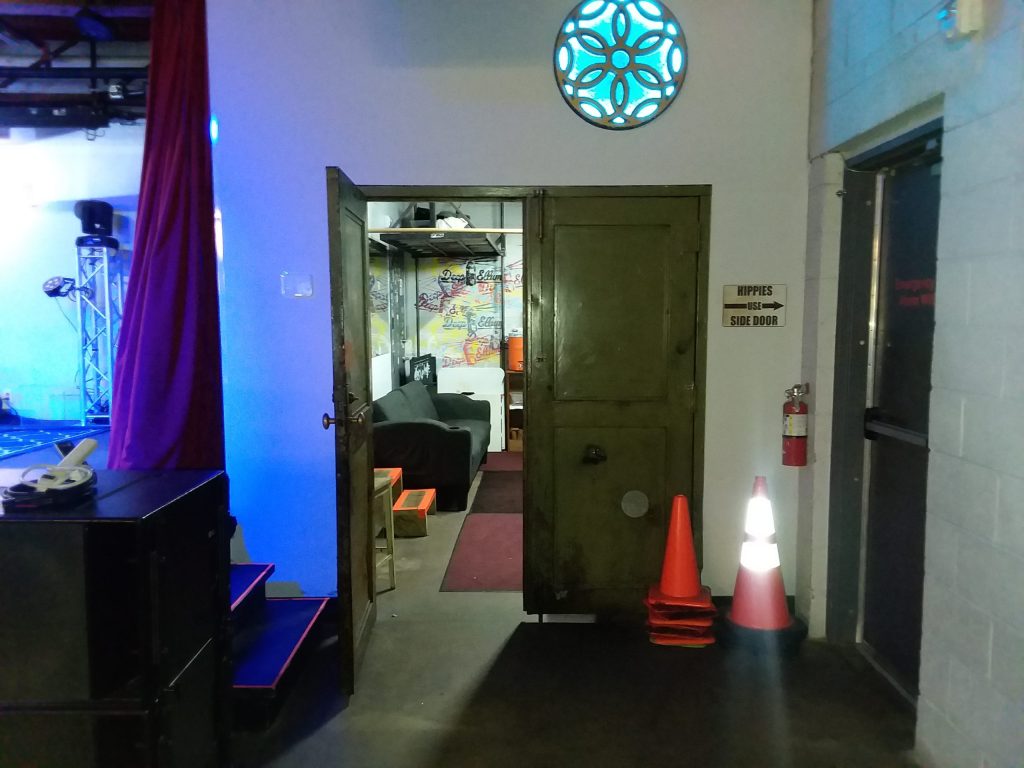

Green Room

• Size – modest
• Location – stage left
• Stage Access – yes
• Public Access – no
• Load in Access – yes

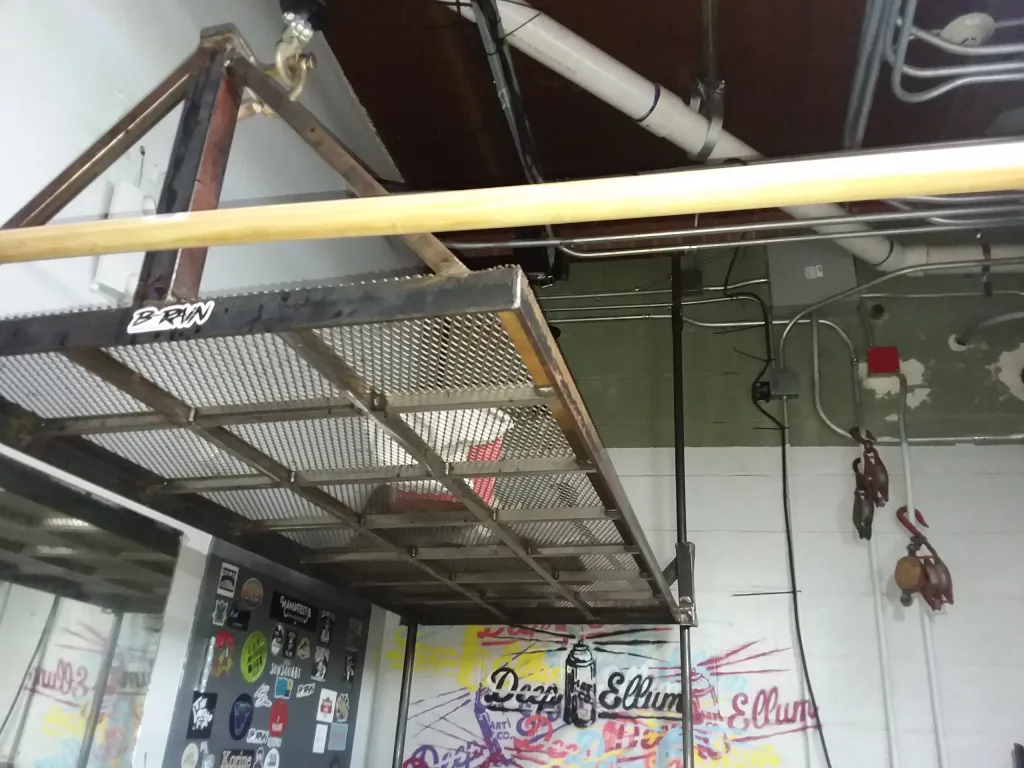

• Storage – lift for small cases gear / large dead cases may need to return to vehicles / set under the pavilion out back

Restrooms

• 5 single unisex stalls
• 1 wheelchair accessible/family stall inside
• 2 wheelchair additional restrooms located outside rear door

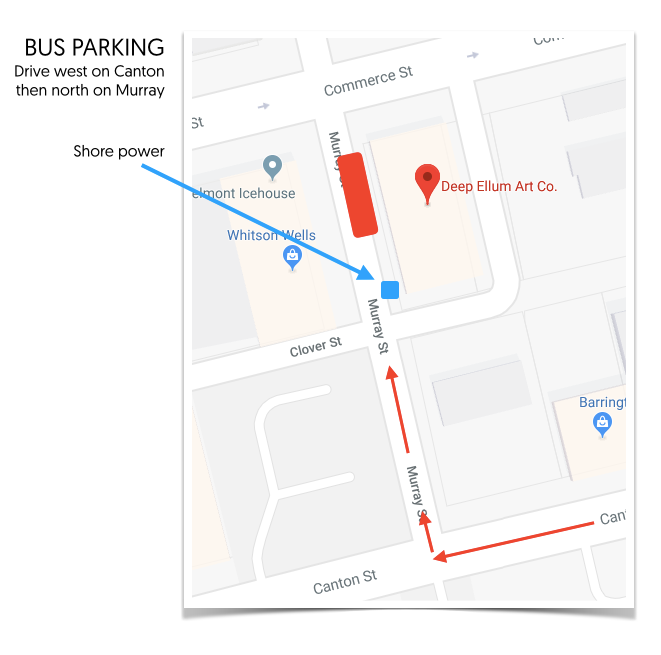

Parking

• More info coming soon

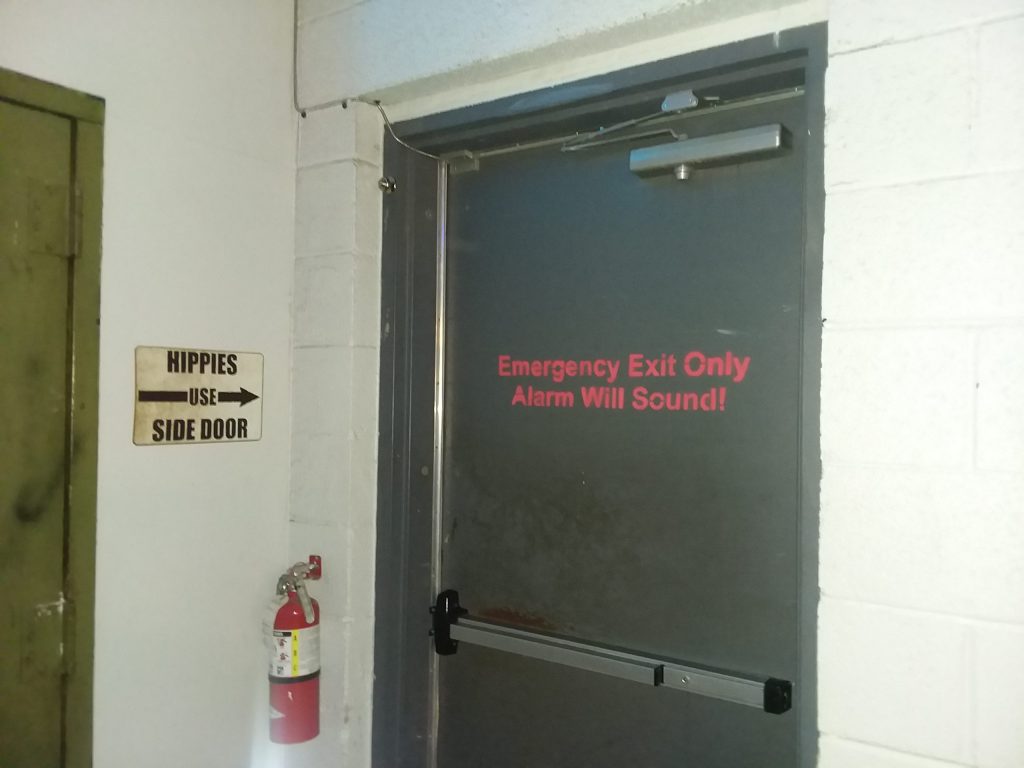

Loading In/Out

• Loading In / Out is done through side doors located on Murray Street
• Side door size – standard 36 inch door
• Roll up door size – 10 ft wide
• Front doors size – double doors that both open
• Policies / Procedures – standard load in time is 4:00 / earlier load in may incur extra fee

Storage/deads

• Limited space located in public area

Outside Pavilion

• Staging – 27′ X 15′ covered performance area
• Drum Riser – 8′ X 5.5′ (splits into 2 smaller risers)
• Power – 4 dedicated 20 Amp circuits
• 2 – 3 section quad box power stringers
• Load In / Out – Sliding door located on Murray Street (approximately 15″ from trailer to stage)
• Console: Midas MR18
• Processing: DBX Driverack 260
• Mains: 2 – EV Sx300
• Main Power Amp: QSC GX5
• Subs: 2 – JBL JRX118
• Sub Power Amp: Crown XTi1000 Bridge Mono (Subs are in-line and not run on an Auxiliary)
• Monitors: 5 – DAS Action M12a (Monitors are mixed from FoH console, no split available)
• Outfills: 2 – EV ZLX12p
• Lighting: 2 ADJ QA5 IP on wired DMX controller

Artist Loft

3023 Commerce St. Dallas, TX 75226

• Beds – 8 twin size, 4 folding day beds
• Bathrooms – 2 full baths with shower upstairs / tub down stairs
• Power – 110v
• Internet – see log in details upon arrival
• Kitchen – full kitchen
• Pets Policy – No pets unless otherwise agreed to by owners.
• Noise Policy – We have neighbors at the loft, please be respectful and keep the noise down.
• Clean Up – Cleaning fee will be retroactively assessed if the loft is trashed.  Please pull sheets off only the beds that were slept on.
• Bedding – Provided
• TV – 48 inch Visio
• Stereo – Bluetooth Speaker
• Laundry – Washer & Dryer
• Gate/Codes – Codes will be given by John LaRue – 214-697-8086
